MessLeha

The project MessLeha analyses measurement methods and environments for the characterization of fast switching power semiconductors and develops a machine-readable datasheet suitable for all simulation tools.

Contact

Alexandra Fabricius

Project duration: 01.05.2020 – 31.12.2021

Project partners: DKE German Commission for Electrical, Electronic & Information Technologies of DIN and VDE, Infineon Technologies AG, PE-Systems GmbH, Physikalisch Technische Bundesanstalt, University of Stuttgart (Institute of Robust Power Semiconductor Systems and Institute for Power Electronics and Electrical Drivers)

Associated partners: ABB Power Grids Switzerland, REFU Drive, Rohde & Schwarz GmbH & Co. KG, Rohm Semiconductor GmbH, Fuji Electric Europe GmbH

WIPANO BMWi en
BMWi DIN DKE

Project funding: MessLeha receives funding from the program WIPANO (Knowledge and technology transfer through patents and standards) of the German Federal Ministry for Economic Affairs and Energy.

More on the WIPANO program (in German): https://www.dke.de/de/mitmachen/foerderprogramme/wipano



Project management: Jülich (PtJ)

Project motivation

Selecting the right semiconductor is a crucial step during the development of a power electronic system. Semiconductors are characterized using the measurement methods and environments defined in the IEC 60747 series on semiconductor devices. However, gaps in these standards impede the traceability and, therefore, the comparability of measurement results. Furthermore, the application of these standards is limited when it comes to new technologies like SiC and GaN, which reach significantly higher switching speeds.

Furthermore, setting up a simulation during the selection process is often laborious on the customer side. Semiconductor manufacturers have to decide which of the many available simulation tools they want to model. If their customers use a different tool from the ones they have selected, then parametrization will require considerable effort.

Project description

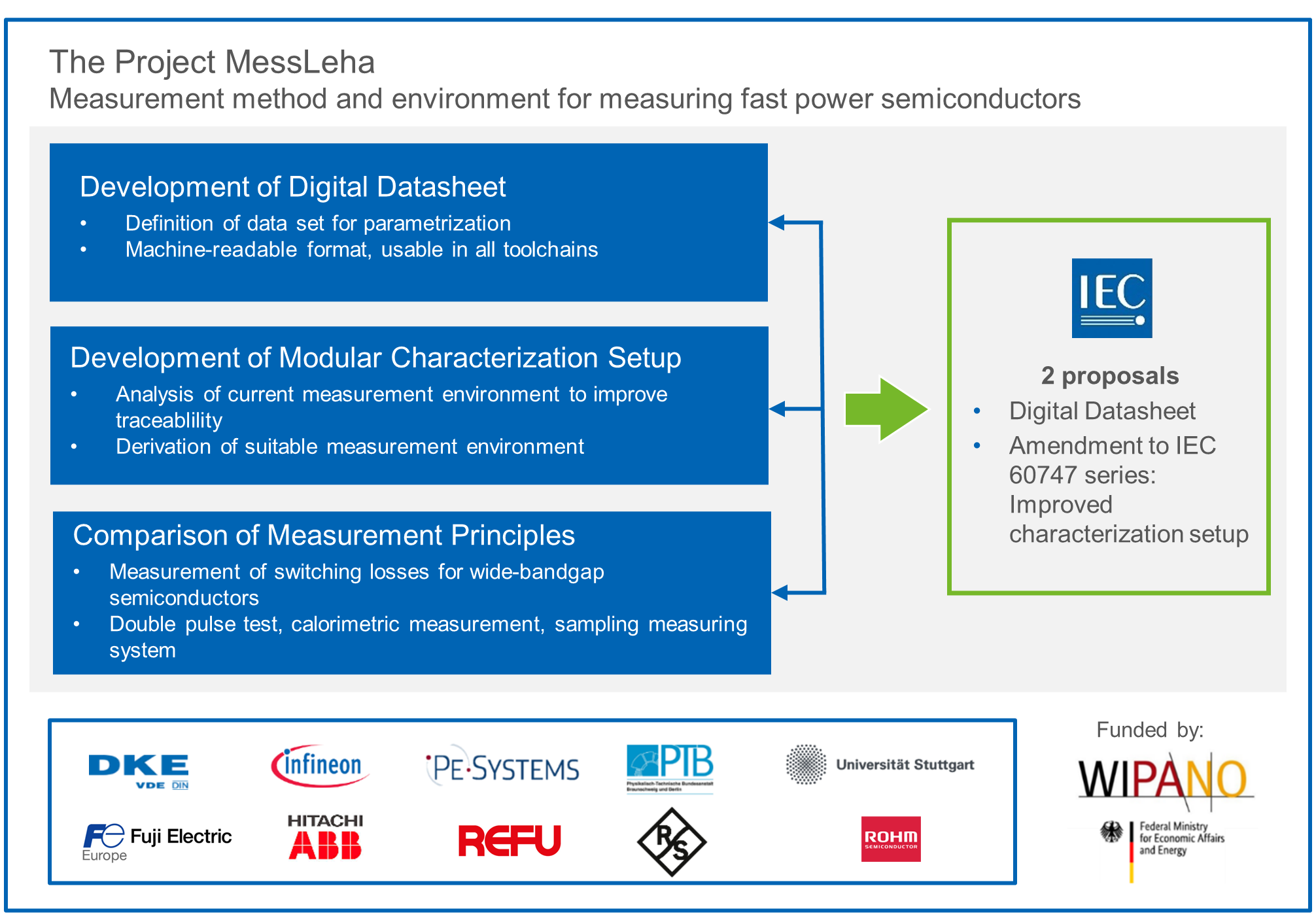

The project MessLeha addresses these issues by developing a modular characterization setup for measuring fast power semiconductors. The project will also define a machine-readable data sheet to support the setup of simulation models.

To achieve this, the currently specified measurement environment will be analyzed, regarding the traceability of measurement results using reference designs. Subsequently, an improved measurement setup will be developed. For the machine-readable data sheet a data set will be defined that allows for the parametrization of all common simulation models.

Furthermore, the partners will compare several measurement principles for determining switching losses for fast semiconductors. They will also advance the sensor technology for the Double Pulse Test, which is used to determine switching losses, to make it suitable for novel device generations.

Based on the project results, two drafts for international standardization will be developed.

Project goals

The project MessLeha aims for the two standard drafts to be proposed to IEC. The first proposal is an amendment to the standards IEC 60747-8, -9, and -15 and will address the current lack of traceability of measurements. It will furthermore make sure that the Double Pulse Test will also be applicable to the new SiC and GaN semiconductors. The second proposal will define the machine-readable data sheet which will be useable in all simulation tools and enable the comparability of components based on the data sheet values.

Pre-announcement of the second project workshop on 02 July 2021

Icon bitte beachten
VDE

A follow-up workshop will take place on the morning of 02 July 2021. During the event, the project partners will present new findings and how the feedback of the first workshop was implemented.

The workshop is scheduled for the day after the ECPE SiC & GaN User Forums. The venue will be Stadthalle Erding, same as for the Forum. Depending on COVID 19 restrictions the event will be organized as a hybrid or virtuell event.

More information is coming soon.


Online Workshop from March 4, 2021

Icon Termine
VDE

As part of the MessLeha project, an online workshop was held on March 4, 2021.

In two breakout sessions feedback and requirements from stakeholders were gathered to be incorporated into the ongoing work and resulting standardization proposals for the International Electrotechnical Commission IEC.

Info flyer with agenda
