2022-03-31 short info

Traffic lights 2.0 - intelligent, environmentally friendly, safe

Intelligent signaling devices make traffic lights not only safer, but also more efficient. The newly published VDE SPEC "Interface for digital Signals and Sensors for Traffic Light Control Devices" is a paper that deals with the introduction of an open, intelligent, digital interface for units that are typically mounted on the traffic light pole.

Contact

Artur Schmidt
Responsible body

The modern citizen demands an innovative and environmentally friendly infrastructure. This refers to all areas of life - from smart homes to smart cities. It is believed that with modern traffic light control devices comes an improvement in safety and reliability. Functional safety and high availability are a given. Intelligently networked systems are ubiquitous and increase environmental friendliness to a high degree. Compared to conventional systems, they enable copper consumption to be reduced by up to 25%. In addition, smart traffic lights save energy and thus drive the digital mobility of the future.

VDE SPEC 90013 - for a better communication

This VDE SPEC "Interface for digital Signals and Sensors for Traffic Light Control Devices" deals with the introduction of an open, intelligent, digital interface for units that are typically mounted on the traffic light pole. These can be of a safety-relevant nature such as signal heads, but also of a non-safety-relevant nature like push buttons.

This VDE SPEC specifies the parameters and the physical characteristics of the interface for bidirectional communication of traffic light controllers with distributed signalling and detection devices in an architecture according to EN 50556:2018, 3.2.8 "Centralized power supply, distributed intelligent system".

The ILT communication interface

The VDE SPEC "Interface for digital Signals and Sensors for Traffic Light Control Devices" includes the ILT communication interface (ILT = Intelligent Line Technology) between the ILT components and the ILT interface box. The network topology, communication standard, and protocol are included, as well as the connector. The network between the ILT interface boxes and the traffic controller is excluded from this specification, as this is a concern of the system integrator. Thus, addressing, and other network issues are only considered between the ILT interface box and the ILT components

About the content

VDE SPEC 90013 - Cover
SWARCO TRAFFIC SYSTEMS GmbH; VDE

The interface specified in this VDE SPEC is intended for use on permanently installed as well as transportable TLC (Traffic Light Controller). In order to be able to fully exploit the technical and economic potential of the decentralized architecture, not only safety-relevant data but also non-safety-relevant data according to the VDE 0832 series of standards are supported.

Optical signalling:
The signal heads developed along this specification provide comfortable functions like the control of luminosity dependent on operational time, to complement the physical degradation of LEDs. Thereby the lifetime can be sustainably extended. By the standardised connection, additional components can be connected without special skills.

Acoustic/tactile signalling:
To enable a consistent wire-saving technology, it is important to include the blind signalling devices, which combine not only the safety-relevant functions of the release but also non-safety-relevant functions such as the time-dependent volume adjustment, the regionally differently handled orientation tone, and the sensor system for the requests.

Sensors:
It is important to include the non-safety-relevant sensors that are independent of the blind signal generators; in the first step, this concerns components such as request buttons and traffic detectors.

The following ILT components are included in the scope of this document:

  • ILT Interface box
  • Aspects
  • Count downs
  • Traffic detectors
  • Push buttons
  • 3rd party unit

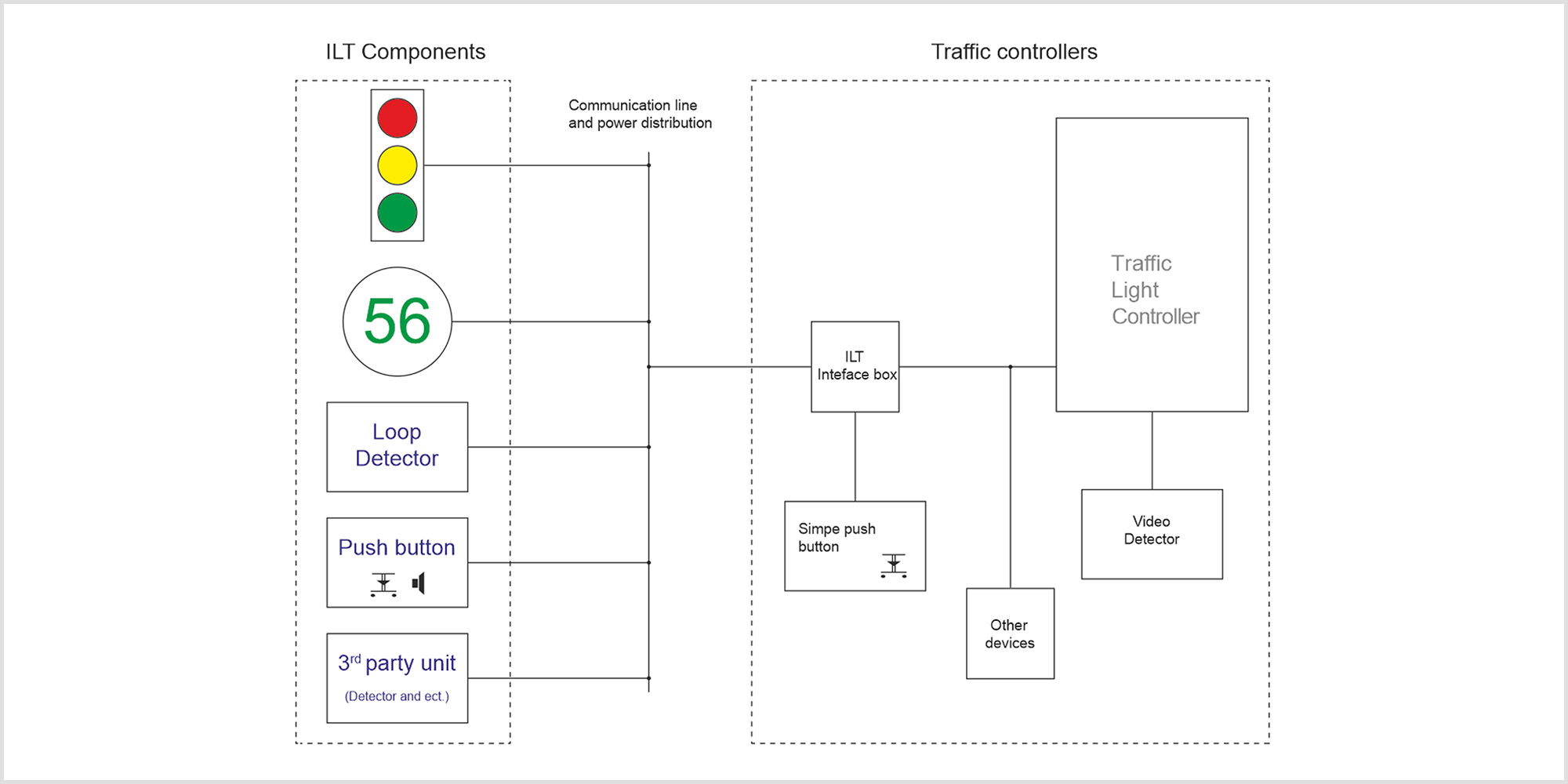

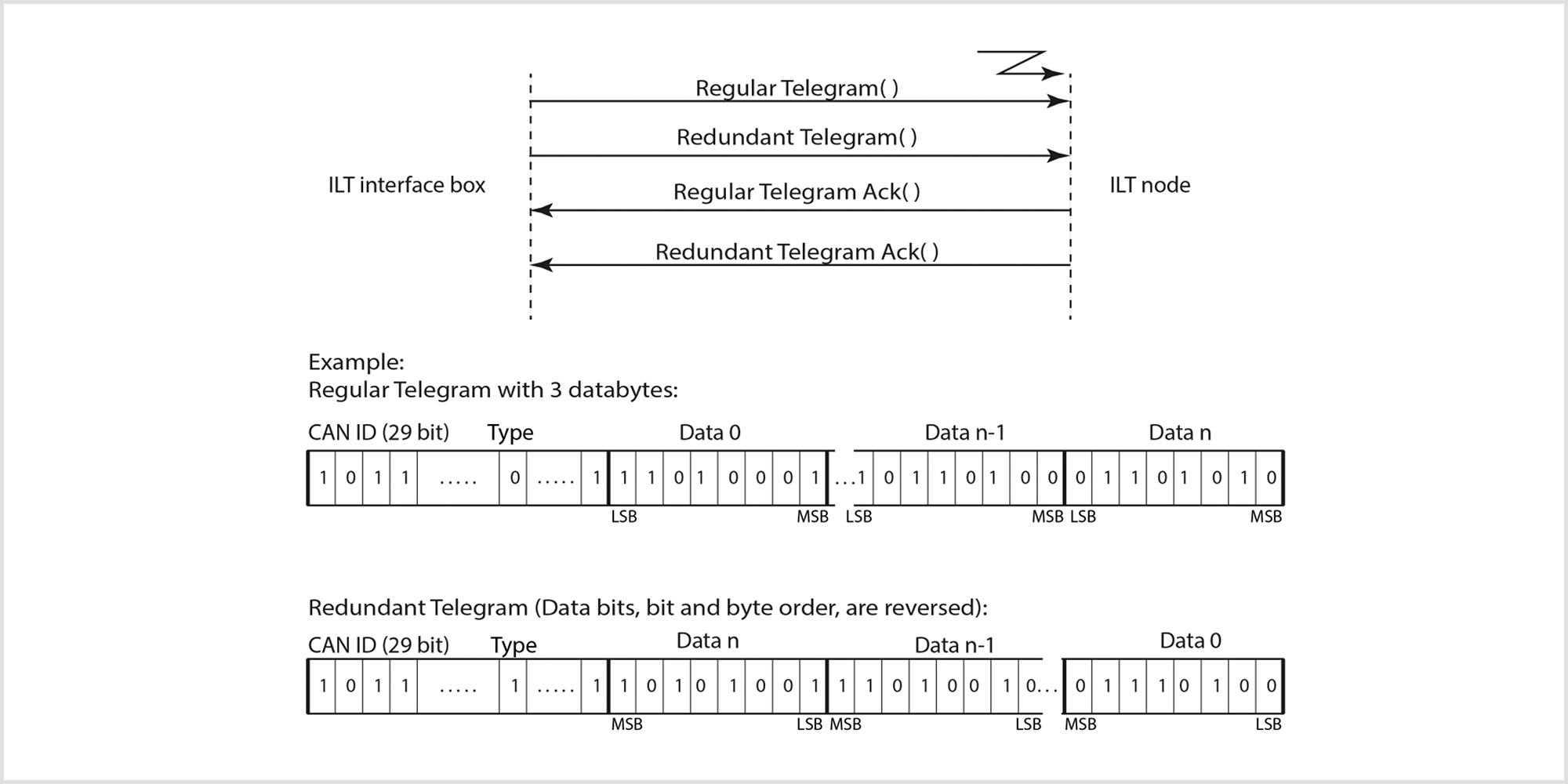

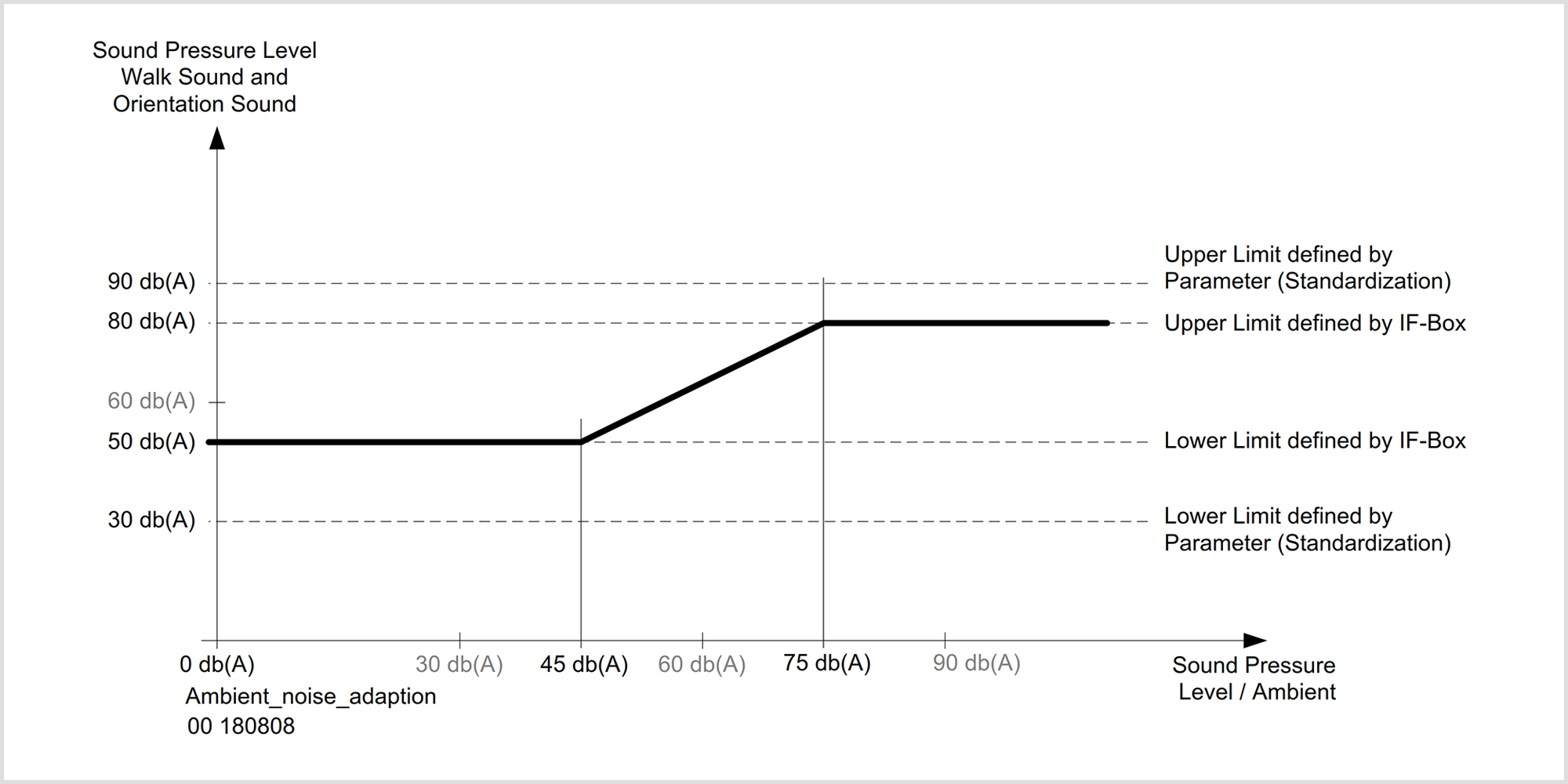

Graphics from this VDE SPEC


Register at the Manufacturer Identifier

Why should I register?
In traffic light controllers with an open interface according to VDE SPEC 90013 it is essential to have components with unique identifiers. The manufacturer identifier is one important part of the unique number. In order to act as vendor of components for traffic light controllers a registration is necessary.

How do I apply?
Fill out the registration form that you will receive after contacting Mr. Schmidt (artur.schmidt@vde.com), sign it and send it to the Central Registration Office:
VDE e.V., Manufacturer ID VDE SPEC 90013, Merianstraße 28, 63069 Offenbach, Germany

Do you charge a registration fee?
Yes, to cover registration costs, the VDE will charge a one-time fee of EUR 1,000,-.

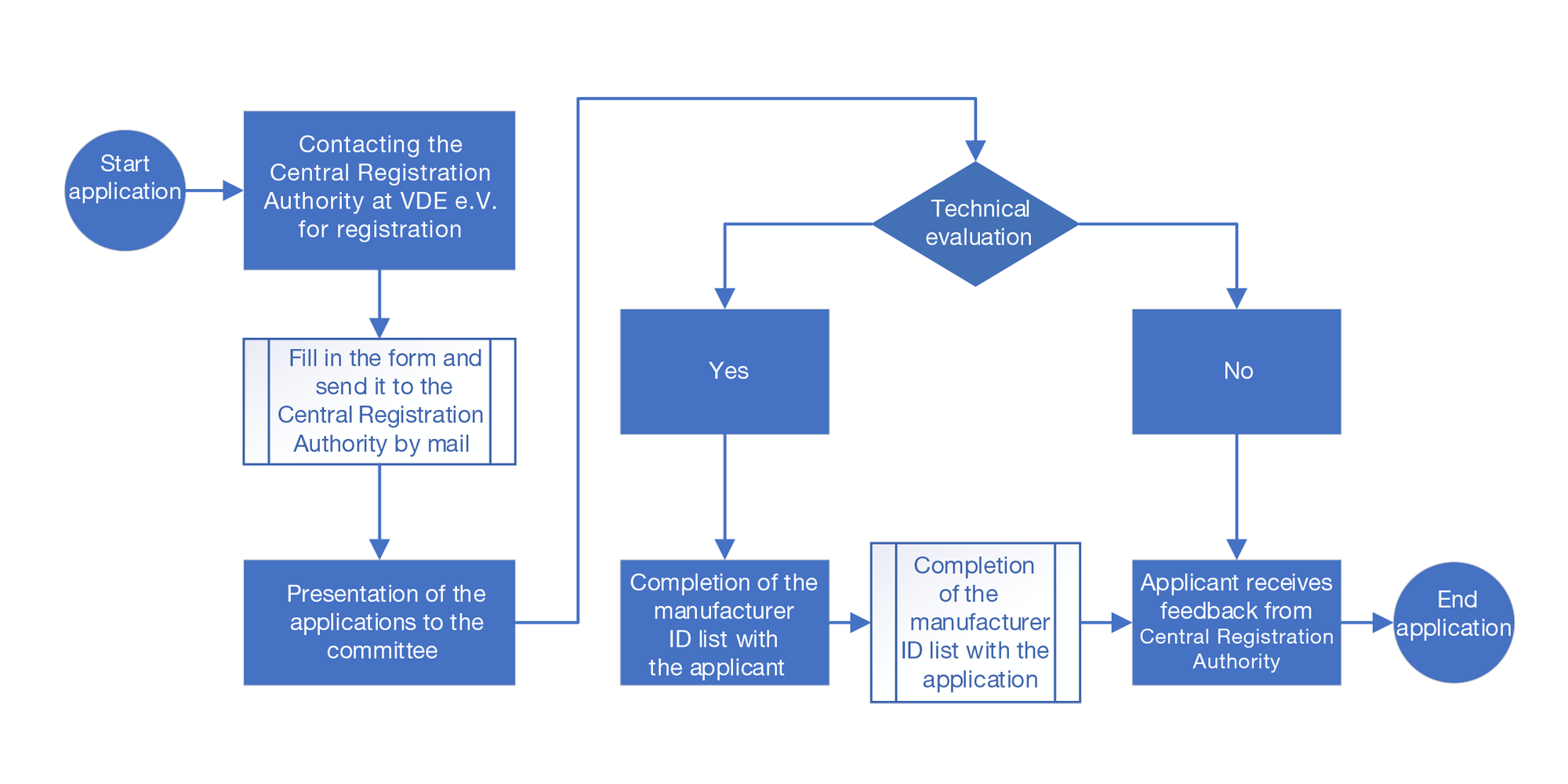

What is the approval process?

VDE SPEC 90013 - Registration

Approval process
